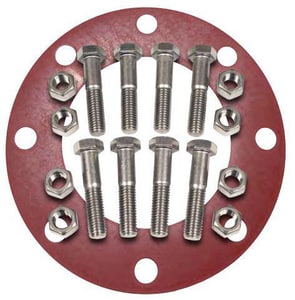

12 150# Zn Rr 1/16 Ff Nbg Set

12 150# Zn Rr 1/16 Ff Nbg Set

Non-asbestos gaskets (green): | Manufactured From Aramid and Other Synthetic Fibers Bonded with Nitrile Rubber (NBR) | Meets ASME B16.21 for 150# & 300# gaskets; Dimensions: ASME B16.5 | Max Temperature: 750° F (400° C); Max Continuous Temperature: 460° F (240° C) | Max Pressure: 1595 PSI (110 Bar); Max Continuous Pressure: 725 (50 Bar) | Red Rubber gaskets (red to reddish orange, smooth): | Manufactured From Styrene-Butadiene (SBR) | Meets ASME B16.21 for 150# gaskets; Dimensions: ASME B16.5 | Durometer Hardness: Shore A ±5: 75

Specifications

• Material: Rubber;Carbon Steel
• Finish: Red
• Diameter: 12 in
• Max Pressure: 200 psi

Manufacturer: FNW · Part #: 149673
