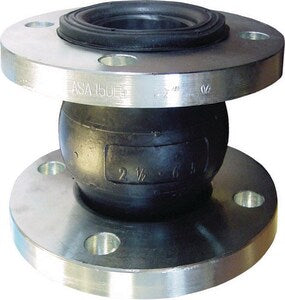

2-1/2X6 Flg Sgl Sphere Flex Conn

2-1/2X6 Flg Sgl Sphere Flex Conn

232 psi working pressure. The spherical shape is stronger than cylindrical elastomer connectors and disperses pressure evenly over a larger surface area. Single sphere flexible connectors are suitable for pressure and vacuum services. The streamline shape also reduces turbulence and sediment build-up and lessens deformation while under pressure. The elastomer allows greater movements in the axial, elongation, lateral, and angular directions and provides a wide service range due to its chemical resistance characteristics. EPDM elastomer sleeve

Specifications

• Material: Carbon Steel
• Length: 6 in
• End Connection: Flanged

Manufacturer: FNW · Part #: FNW40AL
