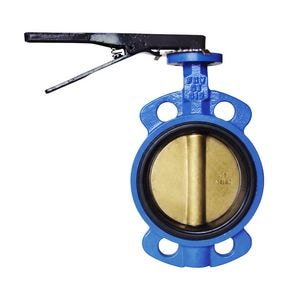

Lf 4 Ci Brz Epdm 200# Waf Bfv Lo

Lf 4 Ci Brz Epdm 200# Waf Bfv Lo

Resilient seated butterfly valve | Designed for 125/150 lbs flanges | Standard aluminum-bronze disc | Secured stem retainer plate for blowout-proof protection and also allows operator removal with valve in line | High strength 2-piece stem eliminates taper pins and disc screws from flow path | Cartridge style seat permits easy change without special tools | Molded o-ring eliminates the need for flange gasket | Shell tested to 150% and seat tested to 110% of maximum working pressure | Low maintenance design | Lead-Free

Specifications

• Material: Cast Iron
• Height: 12-7/20 in
• Length: 2-1/20 in
• Max Pressure: 200 psi
• End Connection: Flanged

Compliance: Lead Law Compliant

Manufacturer: FNW · Part #: FNW711EP
