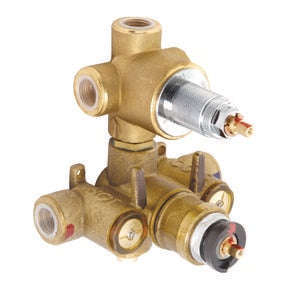

1/2 Tstat Ri Vlv 3P

1/2 Tstat Ri Vlv 3P

No Finish | Solid brass construction | Rough-In with Integrated 3 Way Diverter with share function ports 1 and 2, and Shut Off Control. | Built in check valves with service stops | Flow rate of 8.0 gallons per minute at 60 psi | Provides anti-scald protection and temperature regulation | High-temperature safety stop ensures water temperature maximum is 100° F (37.7 C)° | 1/2” NPT female thread (inlet and outlet) valve body | Mounting tabs located on rough-in for secure installation option | Requires Newport Brass Thermostatic Trim (many options available, sold-separately)

Specifications

• Material: Brass
• Height: 6-17/50 in
• Width: 4-33/50 in
• Depth: 4-33/50 in
• Length: 5-43/100 in
• Flow Rate: 7.75 gpm
• End Connection: FNPT

Manufacturer: Newport Brass, Inc. · Part #: 1-743
