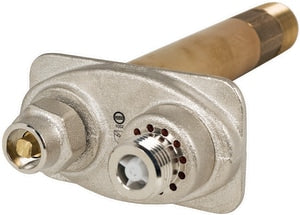

8 Fpt A/Siphon Nf Hyd

8 Fpt A/Siphon Nf Hyd

Inlet: 1 in. MIP x 3/4 in. FIP | Easy installation with single hole insertion and a template on the box | Drains automatically with hose attached | Two backflow check valves and a Anti Siphon Vacuum Breaker allows ASSE 1019 & 1052 approvals | Vandal proof Keyless operation | Great water flow: 18 gallons per minute at 25 PSI | Heavy Brass piping and solid brass stem for long life | Patented "triple seal" positive shut off stem | Horizontal or Vertical installation | Made in USA

Specifications

• Material: Cast Brass
• Finish: Satin Nickel Plated
• Height: 2-1/2 in
• Width: 4-1/2 in
• Depth: 10-3/4 in
• Length: 8 in
• Max Pressure: 125 psi
• End Connection: MIPS

Manufacturer: Prier Products Inc · Part #: C-634N08
