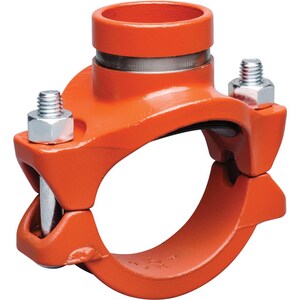

6X1-1/2 Ptd Grv Mech Tee 920

6X1-1/2 Ptd Grv Mech Tee 920

Provides a direct branch connection at any location where a hole can be cut in the pipe | Available as a tee or cross outlet with female threaded or grooved ends | Sizes from 2 – 8" / DN50 –DN200 | Pressures up to 500 psi / 3447 kPa / 34 bar | Rated at 500 psi (3450 kPa) on Steel | May be used on high density Polyethylene or Polybutylene (HDPE) pipe | Not recommended for use on PVC Plastic pipe | Must be installed so main and branch connections are true 90° when permanently attached to pipeline surface

Specifications

• Material: Ductile Iron
• Finish: Orange
• Max Pressure: 500 psi
• End Connection: Grooved

Manufacturer: Victaulic · Part #: CE5892NPE1
