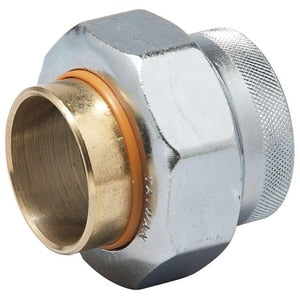

Lf 1-1/4 C X Fip Dielec Union

Lf 1-1/4 C X Fip Dielec Union

Buna-N gasket | Maximum pressure is 250 PSI (17.2 BAR) | Maximum temperature 180 degrees F (82 degrees C) | FIP thread to solder connections | Designed and manufactured to the highest quality standards | Individually factory certified to withstand a minimum of 600 volts on a dry line with no flashover | Meets federal specifications for tensile strength and thread end connections

Specifications

• Material: Steel
• Height: 2-39/100 in
• Width: 2-1/4 in
• Max Pressure: 250 psi
• End Connection: Female Threaded

Compliance: Lead Law Compliant

Manufacturer: Watts · Part #: 0009867
