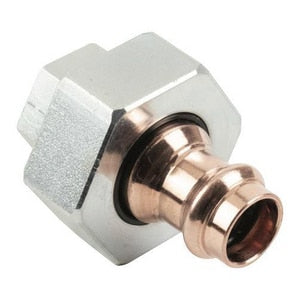

Lf 3/4 Press P X Fpt Dielec Union

Lf 3/4 Press P X Fpt Dielec Union

StreamlinePRS™ mechanical press copper fittings are for use in plumbing or mechanical applications in sizes from 1/2 in - 4 in. | Designed to join ASTM B88 (Types K, L, M) hard-drawn copper tube (1/2 in to 4 in) and soft copper tube (1/2 in to 1-1/4 in). | Operating pressure: 300 psi | Operating temperature range: -20° F to 250° F | SURE PRS™ Seal Technology - 360° leak detection helps identify un-pressed connections. | Anti-creep protection during installation and service | For use in above and below ground applications as allowed by local code. | Environmentally friendly system | Compatible

Specifications

• Material: Copper;Steel
• Height: 2-1/2 in
• Width: 2-17/100 in
• Depth: 7/8 in
• Length: 2-17/25 in
• Diameter: 3/4 in
• End Connection: Press

Compliance: Lead Law Compliant

Manufacturer: Mueller Streamline · Part #: PF 11504
