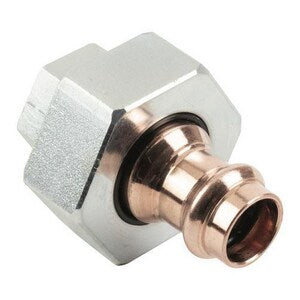

StreamlinePRS™ mechanical press copper fittings are for use in plumbing or mechanical applications in sizes from 1/2 in - 4 in. | Designed to join ASTM B88 (Types K, L, M) hard-drawn copper tube (1/2 in to 4 in) and soft copper tube (1/2 in to 1-1/4 in). | Operating pressure: 300 psi | Operating temperature range: -20° F to 250° F | SURE PRS™ Seal Technology - 360° leak detection helps identify un-pressed connections. | Anti-creep protection during installation and service | For use in above and below ground applications as allowed by local code. | Environmentally friendly system | Compatible
Specifications
Material: Copper;Steel
Height: 3 in
Width: 2-3/5 in
Depth: 1 in
Length: 2-91/100 in
Diameter: 1-1/4 in
End Connection: Press
Compliance: Lead Law Compliant
Manufacturer: Mueller Streamline · Part #: PF 11506
